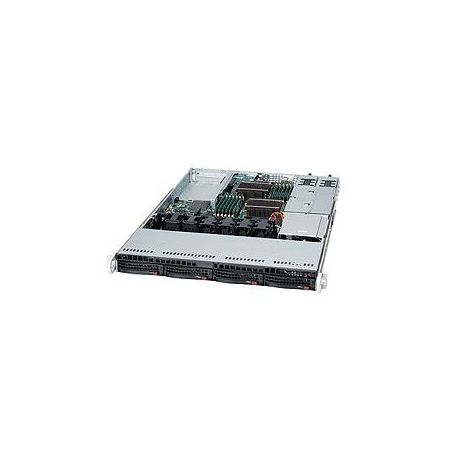

Supermicro SuperServer 6016T-URF Barebone System Item # 150846
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
150846
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The 6016 SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
Product Details
| Item # | 150846 |
| Manufacturer # | 10549232 |
| Ethernet Technology | Gigabit Ethernet |
| RAID Levels | 0, 1, 5, 10 |
| Processor Supported | Xeon |
| Maximum Power Supply Wattage | 1.30 kW |
| height | 1.7 in |
| Additional Information | QuickPath Technology:QuickPath Interconnect supports up to 6.4 GT/s |
| Total Number of USB Ports | 4 |
| Optical Media Supported | DVD-ROM |
| Graphics Controller Manufacturer | Matrox |
| Optical Drive Type | DVD-Reader |
| Number of Universal I/O Slots | 1 |
| width | 17.2 in |
| Product Line | SuperServer |
| package contents | SuperServer 6016T-URF Barebone System; 1 x Super X8DTU-F Motherboard; 1 x 1U SC815 Chassis; 1 x Cooling Air Shroud; 1 x BPN-SAS-815TQ-O-P Backplane; 1 x 35CM, SATA CABLE, PB FREE; 1 x 79536-3270, IPASS TO 4 SATA W/S, DIFF LENG, 64CM,PBF Cable; 1 x Black slim IDE DVD (8x DVD, 24x CDR), TEAC; 1 x CD For X8 series; 1 x RSC-R1UU-UE16-O-P Riser Card; 2 x Heatsink / Retention; 1 x SC815 PDB FOR REDUNDANT 650W PWS 20PIN; 2 x 1U,650W REDUNDANT PWS MODULE; 4 x Hot-swappable Hard Drive Trays |
| Graphics Memory Capacity | 8 MB |
| depth | 25.6 in |
| Product Name | SuperServer 6016T-URF Barebone System |
| Number of PCI Express x16 Slots | 1 |
| Rack Height | 1U |
| manufacturer | Supermicro Computer, Inc |
| Number of 3.5" Bays | 4 |
| VGA | Yes |
| weight | 46 lb |
| RAID Supported | Yes |
| brand name | Supermicro |
| Number of Processors Supported | 2 |
| Maximum Memory | 96 GB |
| controller type | Serial ATA/300 |
| Number of Total Memory Slots | 12 |
| Input Voltage | 110 V AC; 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 4 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Memory Standard | DDR3-1333/PC3-10600 |
| Power Factor Correction | Yes |
| Graphics Memory Technology | DDR2 SDRAM |
| Number of Power Supplies Installed | 2 |
| Number of Total Expansion Slots | 2 |
| Processor Socket | Socket B LGA-1366 |
| Chipset Model | 5520 |
| Number of Total Expansion Bays | 4 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | G200eW |
| form factor | Rack-mountable |
| Memory Technology | DDR3 SDRAM |
| RAM Supported | PC3-6400 - 192 GB - registered - ECC ¦ PC3-8500 - 192 GB - registered - ECC ¦ PC3-10600 - 192 GB - registered - ECC ¦ PC3-6400 - 48 GB - unbuffered ¦ PC3-8500 - 48 GB - unbuffered ¦ PC3-10600 - 48 GB - unbuffered |
| color | black |
| warranty length | 3-year limited |
| model name | 6016T-URF |
| Show More ▾ |
